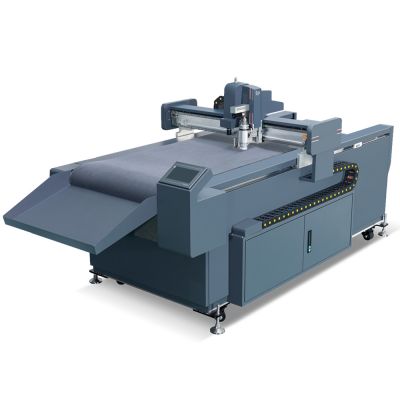

6090 Flatbed Digital Cutting Machine
  • 6090 Flatbed Digital Cutting Machine

See larger image and other views (with zoom)

6090 Flatbed Digital Cutting Machine

   |   5 Transactions

รหัสสินค้า:SIT-DMS-D3

Buyer Protection

6090 Flatbed Digital Cutting Machine

Features:

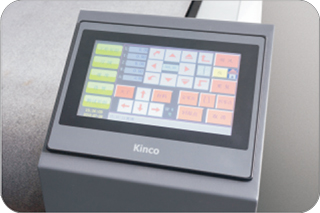

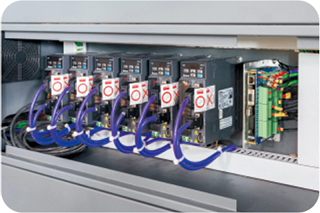

Control System
lndependent research and development ofhuman-machine interface operating system,humanized design, intelligent recognition ofknife cutting, fast capture of cutting targets.

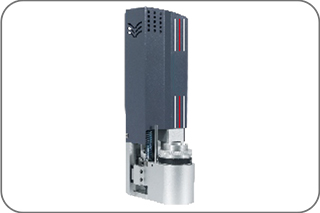

Head design
Use convenient replaceable head design,according to actual needs of replacement,with different functions tools head.

Communication interface
The data interface is the gigabit network interface, can realize the long-range upgradingand maintenance, high speed and far distancetransmission.

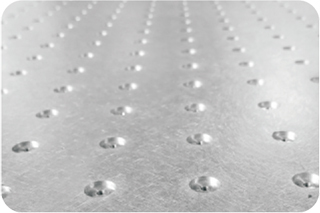

Countertop design
Adopting advanced and mature rolling tabledesign, the plane width can be customized,the theoretical cutting length is unlimited; thevacuum suction design can select 8 suctionareas by software.

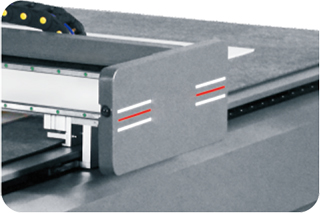

Safety anti-collision system
Safety anti-collision system to ensure thesafety of operators.

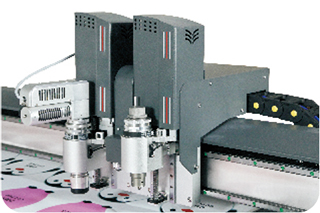

Full modular combination
Oscillating tool + ordinary tool or v-cut tool can beSwitched and achieved to cut soft material freely.

Parameters:

Buffer capacity 2GB
Normal power 3.5kw
Automatic feeding YES
Moving speed 800-1500mm/s
Cutting speed 60-1200mm/s(according to different cutting materials)
Cutting thickness 30mm(More than 30mm can be customized)
Material Fixed Vacuum System
Transmission system lmport (Digital servo motor、Linear guide、Synchronous belt、Screw、Gear)
Multi-function Tools can be easily changed, with oscillating, non-oscillating tool, rotary, milling, kiss-cut, and creasing tooletc.. Positioning with cursor and optional CCD industrial camera.
Voltage 220V± 10%
Working Range 600x900
Max feeding width 600
Product size 1280x2443x1466mm
Packing Size 1180x2743x1266mm
Gross Weight 230GK
Cutting tolerance ±0.05mm
Servo resolution ±0.01mm
Transmission interface Ethernet
Network transmission distance ≤350m

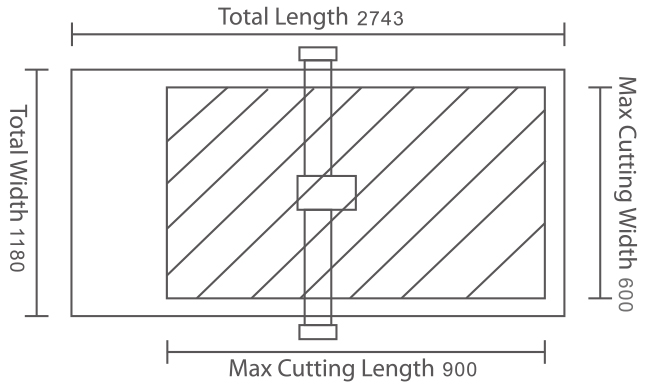

Dimensional drawing:

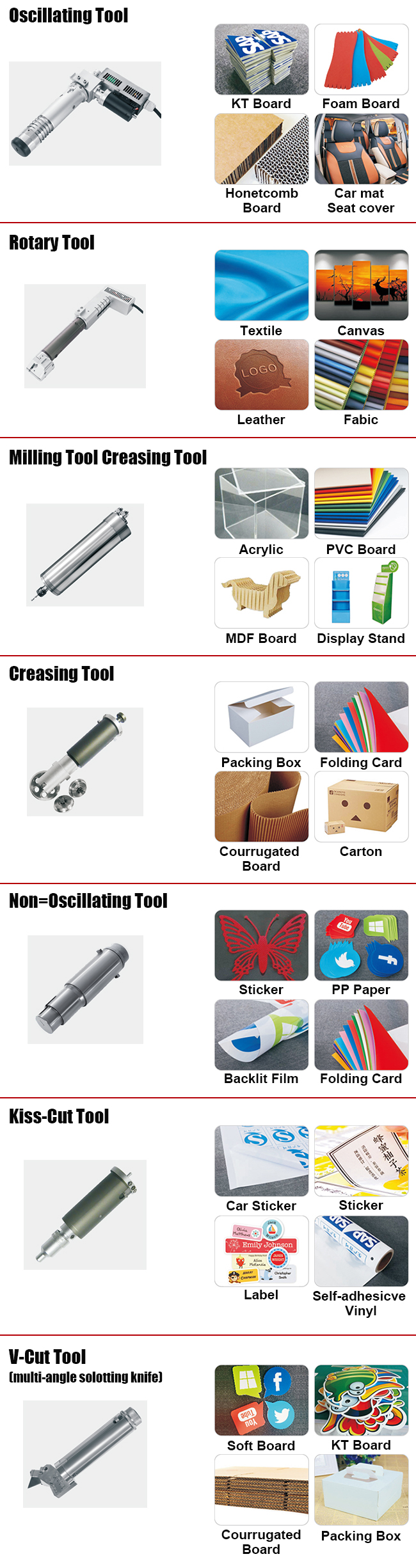

Optional Tools and Application:
