C24A 680mm Vinyl Cutter with Full Auto Contour Cut Function
  • C24A 680mm Vinyl Cutter with Full Auto Contour Cut Function
  • C24A 680mm Vinyl Cutter with Full Auto Contour Cut Function

See larger image and other views (with zoom)

C24A 680mm Vinyl Cutter with Full Auto Contour Cut Function

   |   29 Transactions

รหัสสินค้า:SIT-TH-C24A

Buyer Protection
C24A 680mm Vinyl Cutter with Full Auto Contour Cut Function

Advantages:
- High precision of cutting 2mm small fonts
- Compatible to all files from Artcut, Signmaster, CDR, AI, CAD, Flexi etc pattern making software
- 2.4inch industrial LCD display screen ---  Longer service life
- Silicon buttons --- Easier operation
- Automatic contour cutting function:  Four marks detection automatically, more convenient
- Multiple interfaces: Serial port, USB, U disk  (Bluetooth/ wifi optional)
- U disk offline working: .plt format file can be copied to U disk, and work without PC connection
- Various material can be cut: vinyl, PU, PVC, PET
- Application: label cutting, T-shirt pattern heat transfer, wall / car sticker cutting.

Details:

Specification:
Model Name C24A
Main board 32-bit ARM7 CPU,128Mb, High-speed CACHE  Memory
Function Automatic contour cutting function with sensor
Driver High speed,big power step motor, micro-step driver
Control panel 9 silicon buttons, 128*64 industrial screen

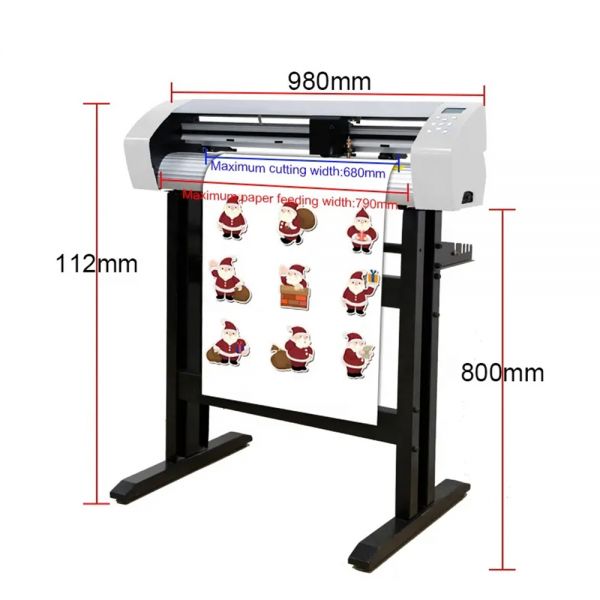

Maximum input width 790mm
Maximum cutting width 630mm
Interfaces USB/ U disk / Serial port  USB
Plotter instruction Compatible DM/PL, HP/GL   DM/PL, HP/GL
Software Signmaster
Cutting force 10-1000g (digital adjustable)
Cutting speed 900mm/s
Maximum cutting thickness 0.8mm
Mechanical precision 0.025mm
Type of plotter pen All types diameter 11.4 mm plotter pen
Powre consumption <80W
Media way With Floor stand
Gross weight 25kg
Package size 1075x324x380mm
