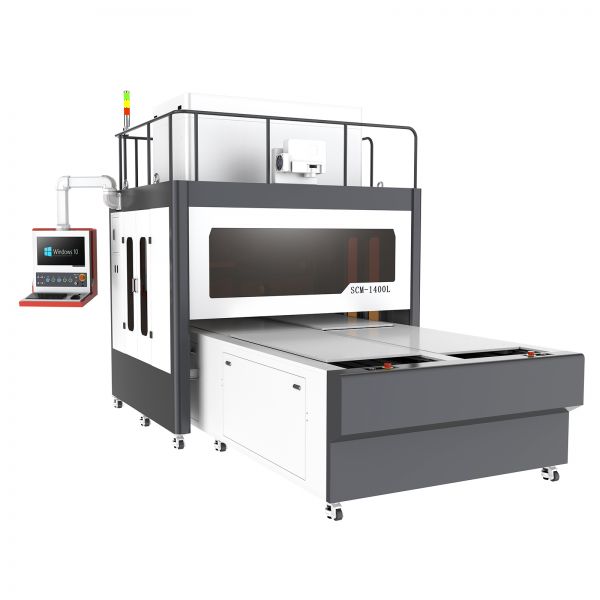

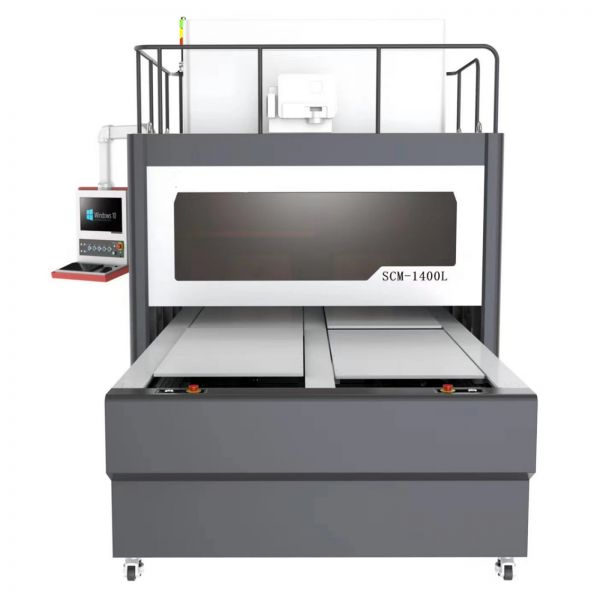

2-Station Laser Marking Machine for Jeans with High-Speed Galvo Scanner

See larger image and other views (with zoom)

2-Station Laser Marking Machine for Jeans with High-Speed Galvo Scanner

รหัสสินค้า:SIT-SG-1400L

ราคา Unit : ฿ 2,601,567/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

กรุณาเลือกประเภท

350W 400W 700W

จำนวน: set(s) Total Cost:
THB ฿2,601,567
น้ำหนักการส่ง: 3630.0lb (1650kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿
Customers Who Bought This Item Also Bought

< >
ชุดดัดป้ายตัวอักษรโลหะรูปแบบแกนคู่ระยะความกว้างการดัด 100 ม.ม.--- Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

฿1,248 - 1,418/set

1200mm เครื่องดัดอะคริลิก ด้วยความร้อน สำหรับดัดแผ่น PVC , อะคริลิก , พลาสติก เพื่อผลิตป้ายไฟกล่องแสง , ขนาดตัวเครื่อง 48"(1200 ม.ม.) ความหนาของ วัสดุอะคริลิก 1 - 6 ม.ม.

฿1860/set

ชุดดัดป้ายตัวอักษรโลหะรูปแบบแกนคู่ระยะความกว้างการดัด 100 ม.ม.--- Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

฿1,248 - 1,418/set

1200mm เครื่องดัดอะคริลิก ด้วยความร้อน สำหรับดัดแผ่น PVC , อะคริลิก , พลาสติก เพื่อผลิตป้ายไฟกล่องแสง , ขนาดตัวเครื่อง 48"(1200 ม.ม.) ความหนาของ วัสดุอะคริลิก 1 - 6 ม.ม.

฿1860/set

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

2-Station Laser Marking Machine for Jeans with High-Speed Galvo Scanner

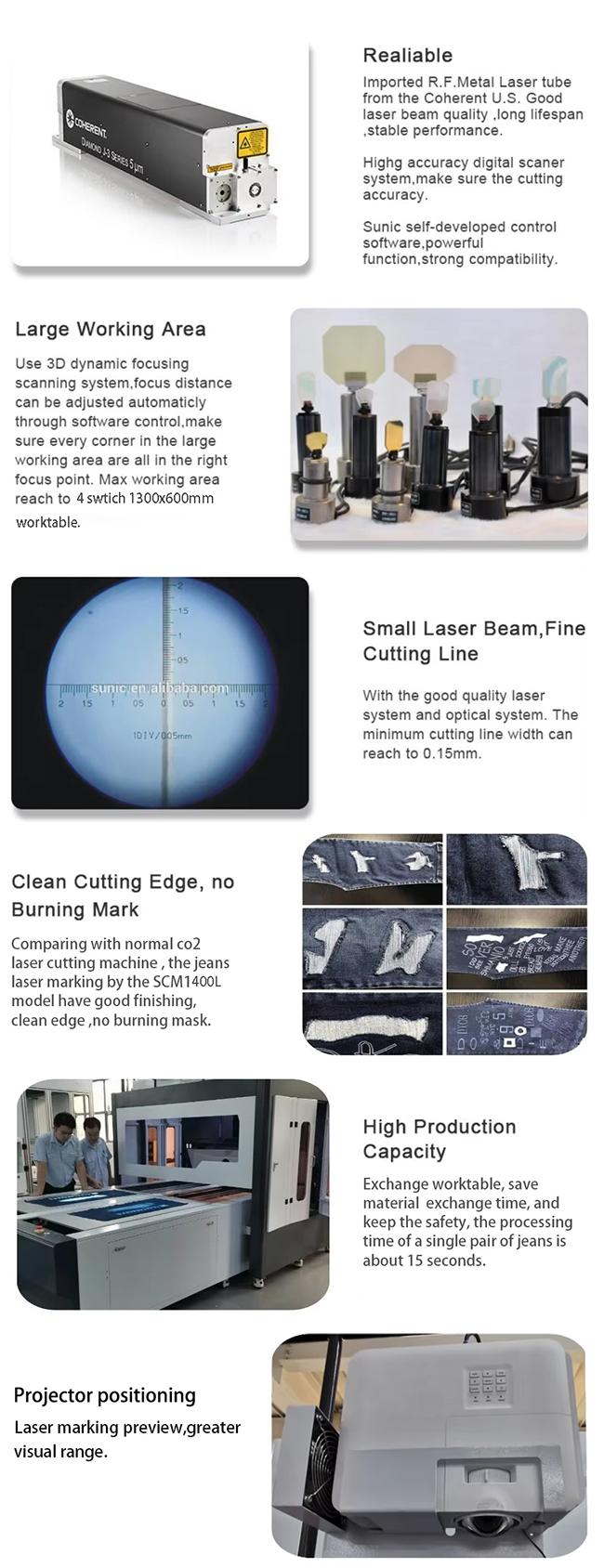

Features:
1.This machine adopts original imported 350W metal RF laser tube, excellent laser spot, stable laser generation and lifetime of more than 20000hrs.

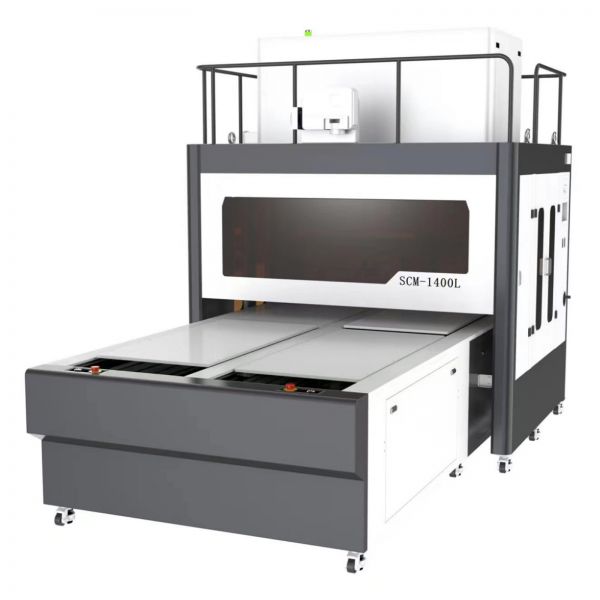

2. 4 independent exchange sliding worktable, increase the production speed, keep the operator’s safety, and give more space to operator change the raw materials.

3.Equipment with projector positioning system, easy for operator to load the jeans in right position.

4. Fully enclosed laser optical system,no adjustment or maintenance needed,can be used directly after installation.

5.3D dynamic galvo control system and automatic up&down Z axis ensure the best processing results.

6. Equipped exhaust fans ensure good exhaust suction effects and environment friendly processing.

7. Comprehensive software support for capturing and creating a variety of labels, as well as non-contact processing.

8. High precision and speed performance with jeans washing working, 20% higher efficiency than the similar models in the market.

Specification:

Model	SCM1400L
Max working Area	1300600mm4
Laser power	350W/400W/700W
Power Consumption	≤ 5-7kWh
Life Span	Over 20000 Hours
Marking Speed	≤10000mm/s
Worktable	MDF/Strip/Honeycomb Worktable
Laser Source	US Coherent RF Metal Laser Source
Laser Wavelength	10.64μm
Laser Frequency	20kHz~200kHz
Focusing method	3D Dynamic Focusing System
Positioning	Projector Positioning
Repetition Precision	0.01mm
System Support	Windows
Output Compatibility	Auto CAD, Photoshop, CorelDRAW etc
File Formats	PLT, DXP, BMP, JPG, AI etc
Software Character	Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting
Power Supply	220V/50Hz
Cooling Way	Circulation of Water Cooling
