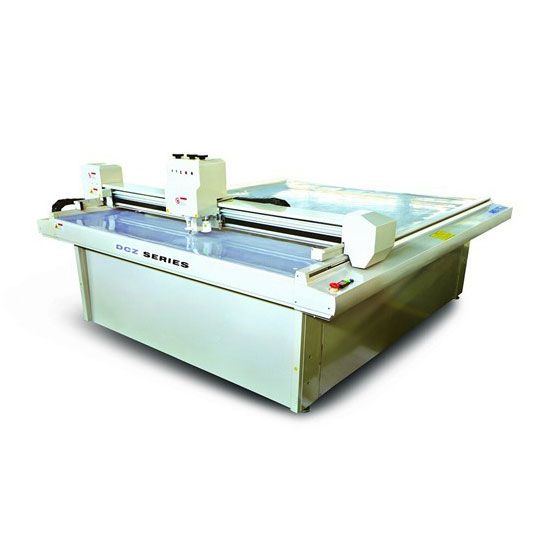

Digital Finishing Systems for Signs and Displays

See larger image and other views (with zoom)

Digital Finishing Systems for Signs and Displays

| 2 Transactions

รหัสสินค้า:CS-DCZ503020

ราคา Unit : ฿ 2,346,430/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

จำนวน: set(s) Total Cost:
THB ฿2,346,430
น้ำหนักการส่ง: 2376.0lb (1080kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿
Customers Who Bought This Item Also Bought

< >
ชุดดัดป้ายตัวอักษรโลหะรูปแบบแกนคู่ระยะความกว้างการดัด 100 ม.ม.--- Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

฿1,275 - 1,449/set

1200mm เครื่องดัดอะคริลิก ด้วยความร้อน สำหรับดัดแผ่น PVC , อะคริลิก , พลาสติก เพื่อผลิตป้ายไฟกล่องแสง , ขนาดตัวเครื่อง 48"(1200 ม.ม.) ความหนาของ วัสดุอะคริลิก 1 - 6 ม.ม.

฿1900/set

ชุดดัดป้ายตัวอักษรโลหะรูปแบบแกนคู่ระยะความกว้างการดัด 100 ม.ม.--- Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

฿1,275 - 1,449/set

1200mm เครื่องดัดอะคริลิก ด้วยความร้อน สำหรับดัดแผ่น PVC , อะคริลิก , พลาสติก เพื่อผลิตป้ายไฟกล่องแสง , ขนาดตัวเครื่อง 48"(1200 ม.ม.) ความหนาของ วัสดุอะคริลิก 1 - 6 ม.ม.

฿1900/set

Related Products

- Metal Letters Bending Tool for 3D Channel Letters (Enhanced Version)
- ฿4,499 / set
- Buy Now >>

Terms & Condition of Purchase: After we receive PO from customer with stamp, we give PI for customer.
Lead Time: After receiving customer's deposit, within 30 days.
Wooden Box: There are total two wooden boxes. One is machine body, the other is vacuum pump, control box etc.

Machine dimension	146" × 97" × 11" (3720mm × 2470mm × 280mm) (Machine body), 420kg
Machine weight	1958lb (890kg)
Package	Fumigation free package
Packing size	150" × 100" × 18" (3800mm × 2550mm × 450mm) (Machine body), 530kg 149" × 29" × 19" (3780mm × 740mm × 480mm) (Vacuum pump and control box), 560kg
Gross weight	2376lb (1080kg)

Fittings list with the machine

Check your accessories with those lists, if anyone is missing, please contract with us.

Note: The parts with * are the optional items. Customer can choose to buy or not.

No.	Name	Unit	Quantity
1	Platform	Set	1
2	Control box	Set	1
3	Computer (host computer, keyboard, mouse, LCD)	Set	1
4	3 phase 5.5kw Vacuum pump	Set	1
5 *	220V Air compressor - type 0.17V	Set	1
6	930 control card and cable	Set	1
7	Control software and installation CD	Set	1
8	Data transporting cable (25 pin and 37 pin)	Strip	Each has one
9	Power supply cable	Strip	1
10	Press wheel (7mm,5mm,3mm)	Piece	Each has one
11	Press wheel (paper board) 0.8mm	Piece	1
12	Screwdriver (middle and small plus drivers and screw drivers)	Piece	Each has one
13	Nipper pliers	Piece	1
14	Open wrench (5-7、8-10)	Piece	Each has one
15	“T” type wrench（2#、2.5#、3#、4#）	Piece	Each has one
16	Inner hexagon wrench (1.5#、2#、2.5#、3#、4#、5#)	Piece	Each has one
17	Special knife holder, fixed pen holder, spring pen holder and press pin holder	Piece	Each has one
18	Spring pen filler	Piece	2
19	light coupling slice	Piece	2
20	Fuse (10A)	Piece	5
21	Knife - 3-7mm, 26 degree	Strip	10
22	Knife - 8-12mm, 20 degree	Strip	10
23	Knife - 13-15mm, 16 degree	Strip	5
24	Special blade	Strip	5
25	Tool box	Piece	1
26	Rubber clasp	Piece	10
27	Black rubber band	Piece	1
28	Round and green rubber mat	Piece	3
29	Φ8 red windpipe	Meter	14
30	Φ75 vacuum rubber pipe	Meter	8
31	Φ75 rubber buckle	Piece	3
32	Laser light	Piece	1
33	1.5V fastener battery	Set	1
34	Carbon brush	Piece	2
35	Assembly screw	Set	1
36	User’s manual	Copy	1
37	certificate of approval	Copy	1
38	Certificate of quality guarantee	Copy	1
39	List of fitting parts	Copy	1
41*	Kasemake software

ระยะเวลารับประกัน
1. รับประกันเครื่องและอะไหล่ 1 ปี
2. กรณีเซอร์วิสลูกค้าไกลเกิน 50 กม. บริการฟรี 3 ครั้ง รวมวันติดตั้งเครื่อง หากเกินต้องคิดค่าน้ำมันรถเพิ่ม 5 บาท/กม. และค่าเซอร์วิสช่างครั้งละ 1,500 บาท
3. สินค้าซื้อแล้วไม่รับเปลี่ยนคืน บริษัทจะทำการซ่อมให้เท่านั้น

สินค้าที่ไม่อยู่ในประกัน
1. หลอดเลเซอร์, เลนส์ และ กระจกสะท้อน
2. ให้บริษัทอื่นซ่อมหรือเปลี่ยนอะไหล่ (หรือเปลี่ยนเอง) โดยไม่ได้รับความยินยอมจากผู้ให้เช่าซื้อ
3. อะไหล่ที่อยู่ในสภาวะแวดล้อมที่ไม่เหมาะสมจนทำให้เกิดความชื้นและสนิม
4. สาเหตุจากการใช้งานผิดวิธี
5. หากเครื่องเสียหายโดยสาเหตุอื่นอันเนื่องมาจากอุบัติเหตุหรือภัยธรรมชาติ หรือไม่ทำตามขั้นตอนที่ผู้ให้เช่าซื้อแนะนำ
ทางผู้ให้เช่าซื้อจะไม่รับผิดชอบกับอะไหล่ที่เสียหาย

Optional Parts
Video registration system (CCD camera): $5,500 (Add an extra fee to the price)
Kasemake software: $5,000 (Add an extra fee to the price)

Customers could select video registration system as an option to cover different materials application. This registration system mainly works for printed materials by reading printed marks automatically then to search the mark, after calculating by the software, cut the shape off the material automatically. This could greatly improve cutting accuracy and efficiency of printed items

Wearing Spare Parts

Items	Specifications	Unit Price
Blade	26 degree	$4.5
	20 degree	$4.5
	16 degree	$4.5
	39 degree	$4.5
	Special type knife (Cut the white cardboard)	$4.5
Plastic pad

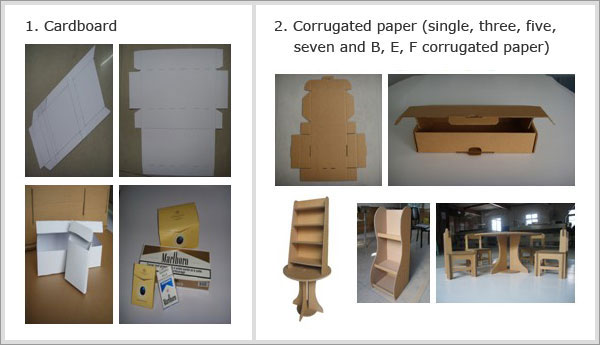

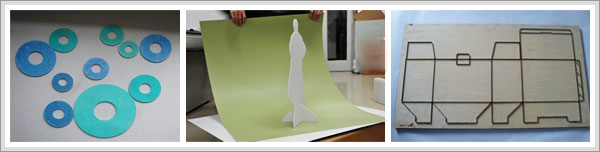

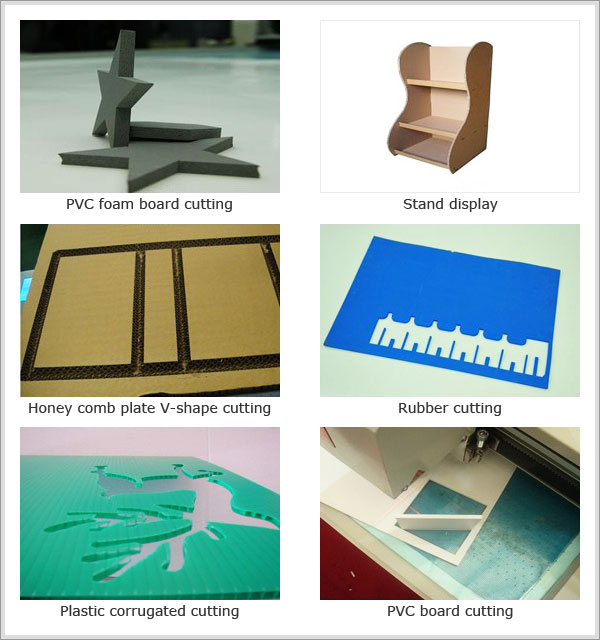

Samples Display

Working video for carton box making

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 2

Buyer
ราคา Unit
จำนวน
Order Date

Cle****
$2443898.00
1 set
2023-06-27

Ada****
$54625.00
1 set
2016-04-14

โต๊ะสำหรับวางตัด และพับประกอบชิ้นงาน --- DIE-less Cutting and Creasing Tables
มาตรฐาน ：ISO2000，มาตรฐาน CE
เครื่องขัดผิวแบบดิจิตอลที่ใช้ในอุตสาหกรรมเพื่อแสดงรูปสัญลักษณ์ ทางหน้าจอ.อัตโนมัติ สมรรถนะสูง มีความแม่นยำ ผลิตชิ้นงานได้ปริมาณมาก เพิ่มมูลค่าผลิตภัณฑ์
Carton Box สำหรับผลิตกล่องชิ้นงานตัวอย่าง แบบ Short –run และโต๊ะพับชิ้นงาน
บริเวณหัวจับของเครื่องมีที่เก็บอุปกรณ์ 4 อย่างคือ ปากกา ล้อแบบพับ ใบมีด oscillating ใบมีด drag + ที่หนีบกล้อง (ส่วนอุปกร์เสริม)

DIE-less Cutting and Creasing Tables

Certificate: ISO2000, CE certificate

The industry’s cost-effective digital finishing machine for sign and displays provides automation, high productivity and outstanding precision, loaded with unique features that save time and boost productivity.

Carton box samples making, short-run production of cutting and creasing tables

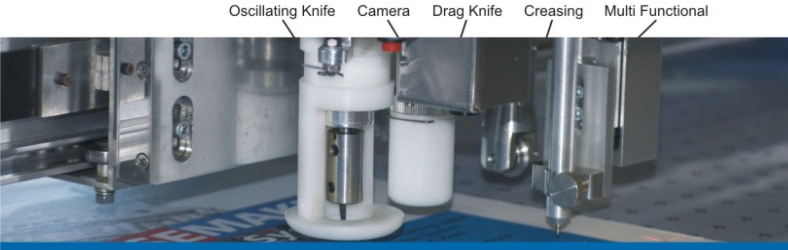

The tool head has 4 tool holders: Pen, creasing wheel, oscillating knife, drag knife + one holder for CCD camera (Option)

Applications

CS-DCZ503020 series sample making machine makes cutting, creasing, drawing available, stable, high speed, high accuracy. It could meet sample making or small production require of packaging company, corrugated box manufacturer, color box manufacturer, color printing manufacturer, die cutting manufacturer. It could cut corrugated board, chipboard, foam board, plastic board, thin wood board, leather, cloth etc. We are great reputed by customers from packaging, advertisement, printing, die cutting, electron, gasket, sign industries.

The machine head, with its collection of tool inserts, provides excellent functionality for a wide variety of materials ranging from paper, pressure sensitive film or vinyl to cartons, textiles, plastics, corrugated, foam board, aluminum and more.

Characters

Many Practical Functions are added to CS-DCZ50 series cutting machine, such as safety guard system, drag knife tool.

◆ Four tools include oscillating knife tool, drag knife tool, creasing tool, plotting pen.

◆ Carton and box can reach to perfect cutting performance

◆ Convenient half cut set to achieve perfect half cutting performance

◆ Safety guard system is equipped to avoid injury

◆ Brunt model sold well in EU and USA market

◆ The tables are styled to look good in the design studio, with strength suitable for the factory floor. Low, unobstructed sides ensure easy loading.

◆ An infra red beam safety system protects the user.

◆ Board is held in position on the table by powerful vacuum systems, whilst accurate registration is assisted by an inbuilt laser light system.

◆ For maximum power and accuracy, all motors driving the motion of the table are digital servos. Motion control is via a P.C. Controller.

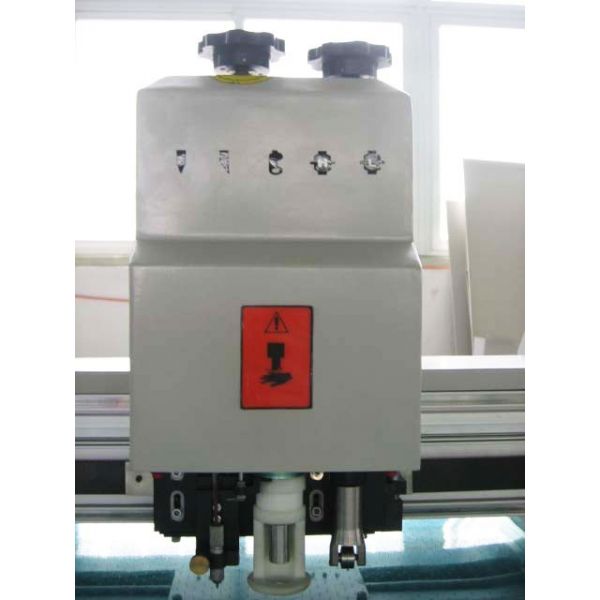

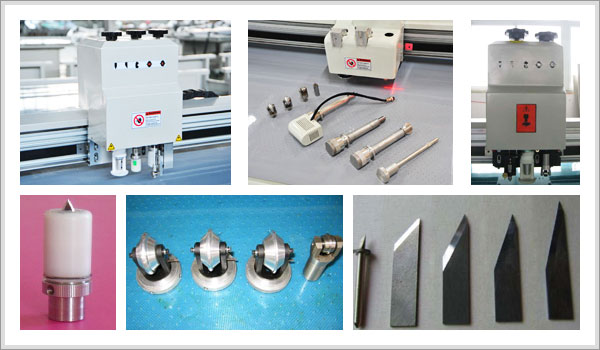

Instruction of Machine Head

There are tooling options to cut and crease the widest range of sheet materials, from corrugated boards to varnish blankets, folding carton board to display board.

If you want to know more information about cutting tool, you can download the file of “Introduction of the head and cutting tools”.

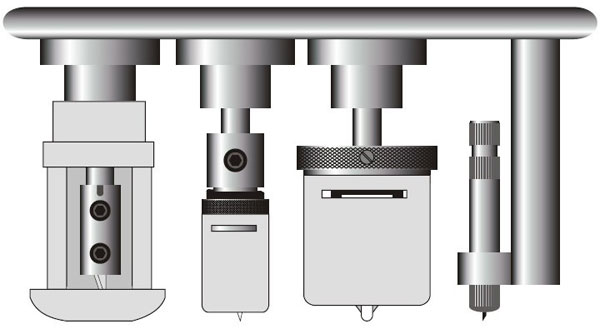

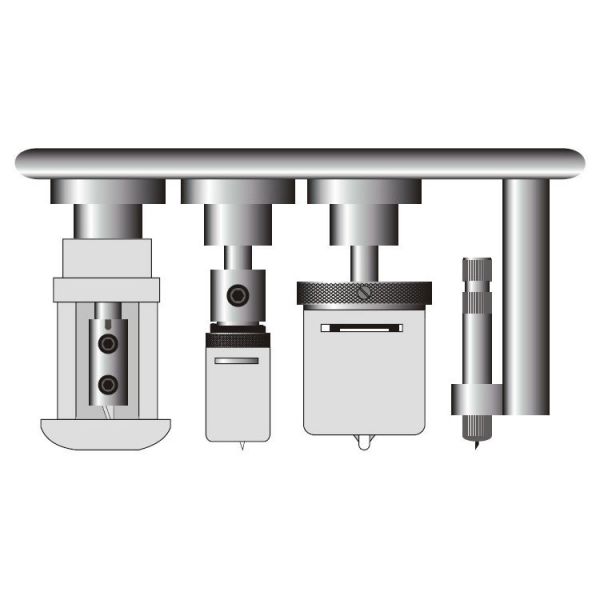

The tool head has 4 tool holders: a pen, a creasing wheel, an oscillating knife, a drag knife + one holder for CCD camera (Option)

Tools Functions

• Drawing function: The pen can draw various high precision drawings.

• Folding function: It can fold corrugated paper, card paper and offset board into `a` relatively perfect folding line.

• Dotted line function: It is used to fold corrugated and grey card paper after cutting them in half, and to cut a dotted line.

• Location function: Precision location with a laser lamp

• Cutting function of oscillating tool: It is able to cut different materials such as corrugated paper, card paper, offset paper, grey board, compound materials, gasket, leather and textiles, etc.

• Heavy duty drag knife tool: The heavy duty drag knife extends the cutting application to cope with hard, thick materials, which are not available in oscillating cutting tool.

• Contour cutting function (Option): Customers could select video registration system as an option to cover different materials application.

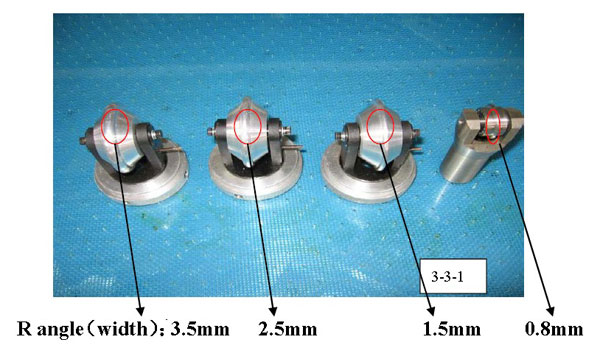

• Pressure wheel: Press fold line function, it can press perfect line in the corrugated paper, cardboard and grey board, etc.

1. I don’t know this website well, how can I trust you?

Sign-in-Thai.com has launched online bussiness for 6 years who already has established customers over 120 countries and areas. We are the lifelong member of ISA and SGIA, and the verified user of PayPal as well as approved by BBB certification.

Learn more about us from the following links:

19th Reklama Pholygraf Trade Fair 2012

ISA International Sign Expo 2012

Exhibition of International Trade Fair for Visual Communication, Technology and Design in Düsseldorf, 2011

Buyers say:

John Hanmer from USA

Jackson, Andy and David from UK

Ben Wong from Thailand

Adam Fernanders from South Africa

JLuciano from Brazil

Adam Fernanders from Australia

More

2. Not clear about the Price Policy of Sign-in-Thai.com?

3. How to pay? Can I use credit card?: You may use the following methods of payment: PayPal online payment, PayPal direct payment, credit card (through PayPal gateway, some areas may be restricted), bank transfer, and Telegraphic Transfer (T/T) payment.; For details, please refer to the following:; a) PayPal online payment
https://www.paypal.com/webapps/mpp/buying-online

b) PayPal direct payment (our PayPal account: lyh@chinasigns.cn)
https://www.paypal.com/webapps/mpp/make-online-payments

c) Credit card payment (through PayPal gateway, some areas may be restricted)
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94038&topicID=11500008&m=TTQ

d) Bank transfer
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94040&topicID=11500008&m=TTQ

e) Telegraphic Transfer (T/T) payment
(1) Place an order
(2) Get the bank account information of Sign-in-Thai.com
(3) Make the payment at the bank, and get the Payment Receipt
(4) Send the Payment Receipt to service@sign-in-global.com
(5) Receive the Tracking Number of your order
(6) Wait for your order.

4. Is it safe to pay online? Will it occur any security problems concerning my personal information?: PayPal, one of the faster and safer ways to pay and get paid online, has worldwide 113 million active accounts, and supports 190 markets and 25 currencies. As a result, PayPal enables global commerce. For details:
https://www.paypal.com/webapps/mpp/paypal-safety-and-security

5. Why did my PayPal payment fail?: The main reasons of failures and solutions:; a) Confirm if your credit card requires verification:
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=10568&m=SRE; b) Confirm if you have exceeded the limitation of maximum amount
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=11516&m=SRE; c) Confirm if you have any other restrictions
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94053&m=SRE

6. How can I know if it is paid successfully?: We will send you a payment confirmation email upon receiving your payment, and your purchase order in “My Account” will be categorized as “Paid”. If you use check or Telegraphic Transfer (T/T) payment, we will change the status of your order until your payment confirmed , and then we will send you the conformation email.

7. How long can I receive the items?: Normally speaking, we will spend 1 or 2 days to prepare the order and if it requires longer time, we will inform you as soon as possible. The general shipping time will be 3 to 7 days. Therefore, under normal situation, you will receive the items in 4 to 9 days.

8. How to receive my order ? Is it safe during shipping?: For the items you purchased online, we will arrange international express delivery to ship and usually the carriers are FedEx, TNT, UPS, DHL, or EMS. It shall be quite safe during shipping with substantial package. Additionally, we will purchase insurance as a gift for your package.

9. How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?: We will send you the tracking number after shipping your items, hereby please keep on checking your email.

10. How to return items and how about the warranty?: For details, please click the following links:; Changes & Returns: http://www.sign-in-thai.com/info/ChangesandReturns.html; Warranty: http://www.sign-in-thai.com/info/QualityWarranty.html

11. If I still have questions to this product, what shall I do?: Please click on the product page and submit your questions, we will reply you as soon as possible.

12. How to change my shipping address?

You can change your shipping address on the confirmation page of your purchase order.

This product has no attributes!

Q&A

Q	Can you confirm that there is a camera installed?
A	The camera is an optional accessory; please see the price in the option. ตอบกลับโดย sign in china
Q	What software is the machine is operated with?
A	It supports all software that can output files of DXF, PLT format, such as CAD, CorelDraw and AI, etc. ตอบกลับโดย sign in china
Q	Does the software KASEMAKE software a must have to run for the machine or you supply an alternative software included in the price?
A	The digital cutting system supports all software that can output files of DXF, PLT format, such as CAD, CorelDraw and AI, etc. Kasemake is optional software; please see the price in the option. It is the complete packaging design solution, with everything you need in one package. Combining powerful design capabilities with presentation and production capabilities. ตอบกลับโดย sign in china
Q	How many heads and holders does this machine have?
A	This digital cutting system has 4 heads and one holder for camera for option. ตอบกลับโดย sign in china

Maximum cutting area	118" × 79" (3000mm × 2000mm)
Maximum cutting speed	39" (1000mm) / s
Minimum cutting diameter	0.24" (6mm)
Maximum cutting thickness	0.59" (15mm)
Control line and driver	Servo motor
Input cushion area	32MB
Positioning precision	0.004" (0.1mm)
Cutting precision	0.004" (0.1mm)
Repeat precision	≤0.004" (0.1mm)
Instruction format	HPGL
Data port	PCI port
Data transport speed	10MB / s
Fixed type	Vacuum absorption
Power of vacuum pump	5.5KW
Power support	220V ± 10%, 50Hz
Software	SICCUT processing software. It supports all software that can output files of DXF, PLT format, such as CAD, CorelDraw and AI, etc.
Standard equipment	Computer, vacuum pump, controlling software, 30 pcs of oscillating blades, and other accessories.
Optional device	Kasemake software
Machine dimension	146" × 97" × 11" (3720mm × 2470mm × 280mm) (Machine body), 420kg
Machine weight	1958lb (890kg)
